Description
Voron 2.4 Pins Mod Hardware kit
The Pins Mod for the 2.4 replaces the M5 screws anywhere they act like a shaft for a pulley or idler.
The STL’s specifically call for a 5mm Dowel with g6 tolerance. The G6 means the dowel is machined between -0.04 and -0.12 from the stated diameter. or in laymans terms it is very slightly undersized.

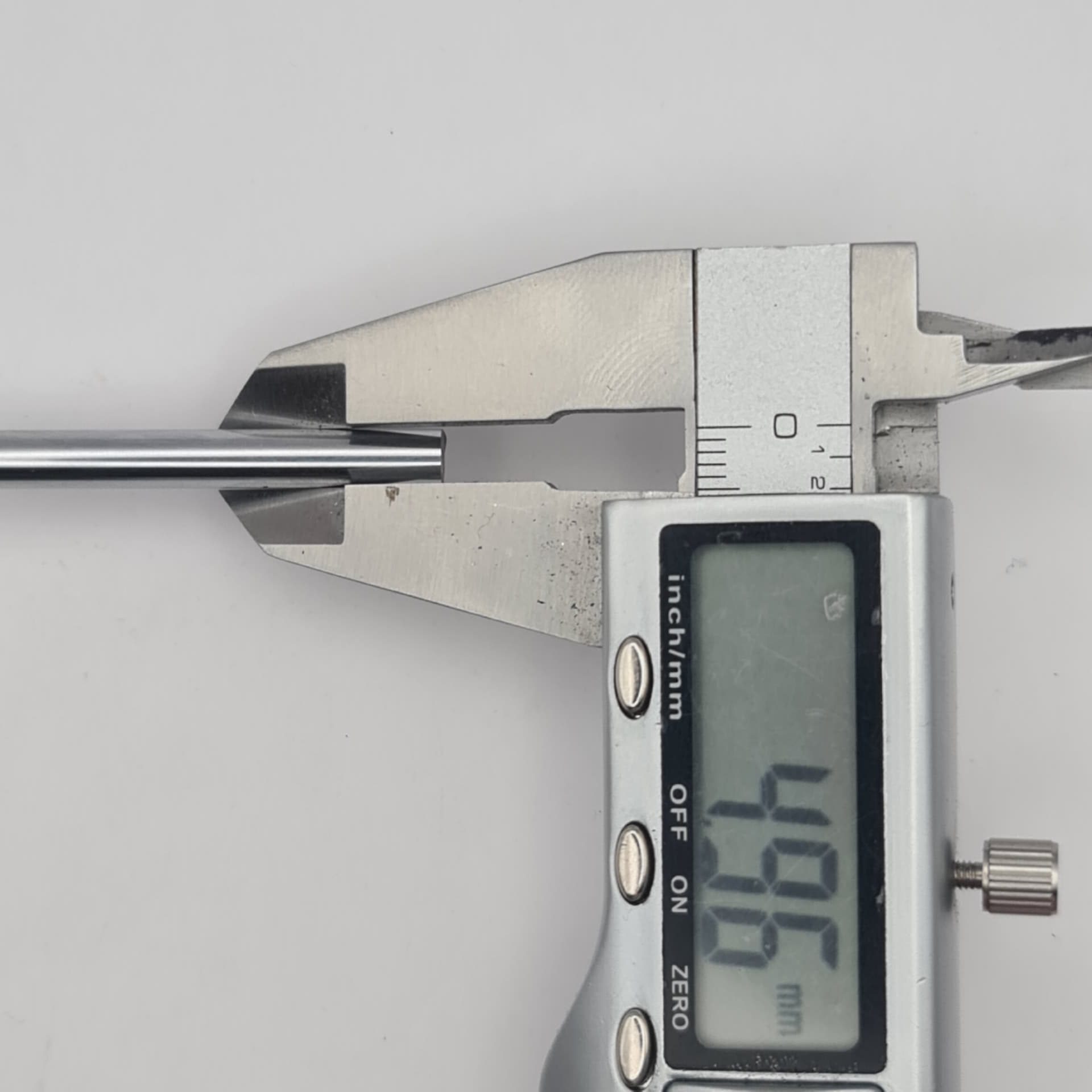

Our pins are machined to 4.96mm and test fitted into pulleys and bearings when produced.
In stock in the UK, Next Day Shipping on all orders placed before 2pm.
Github link here. Original Design by Hartk

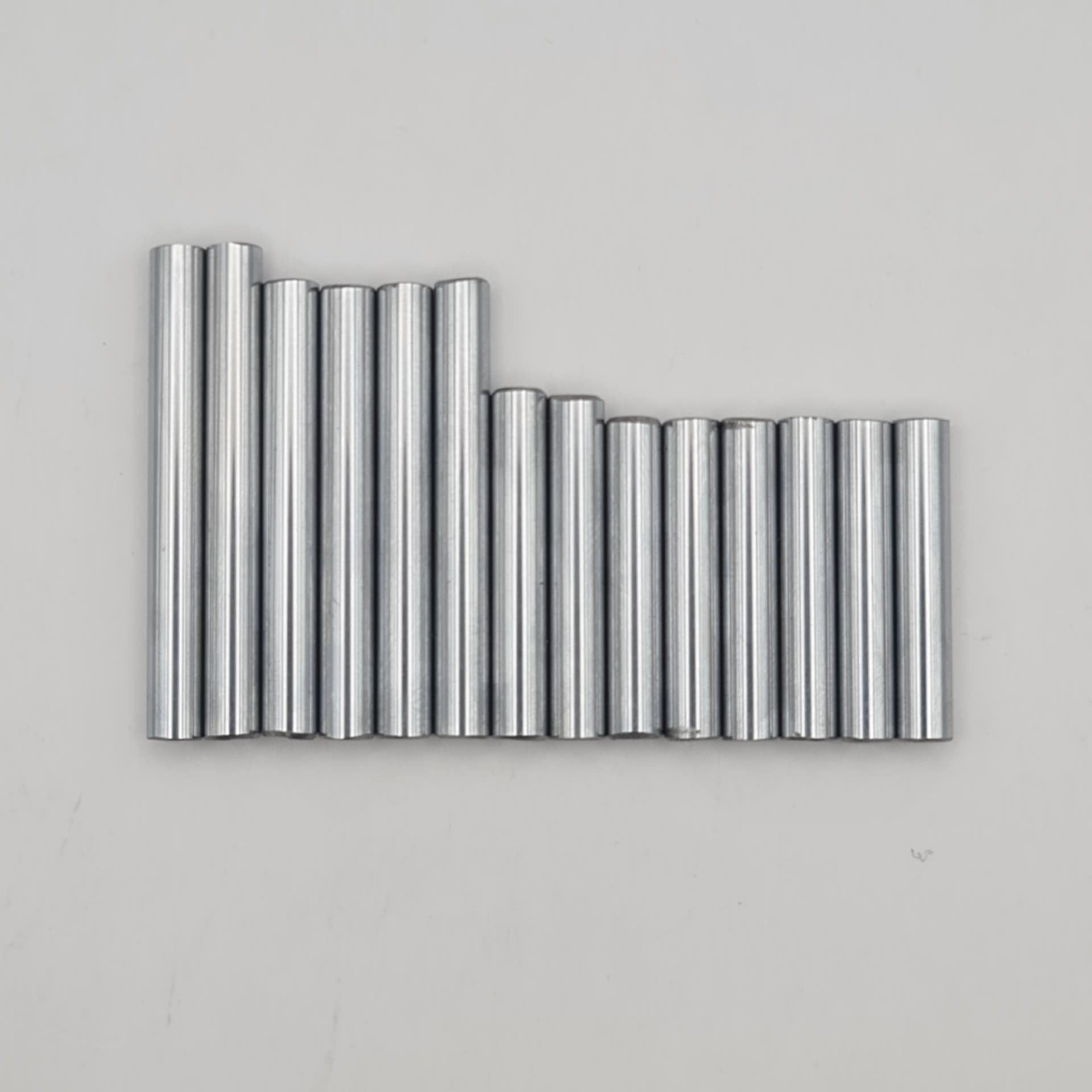

What is in the 2.4 pin mod kit
- 5mm x 28mm g6 dowel (x6)
- 5mm x 30mm g6 dowel (x2)
- 5mm x 40mm g6 dowel (x4)
- 5mm x 43mm g6 dowel (x2)
From the original BOM
[A-B]
30mm (x2)
28mm (x2)
[X-Y Joints]
40mm (x4)
[X-Y Idlers]
43mm (x2)
[Z Idlers]
28mm (x4)

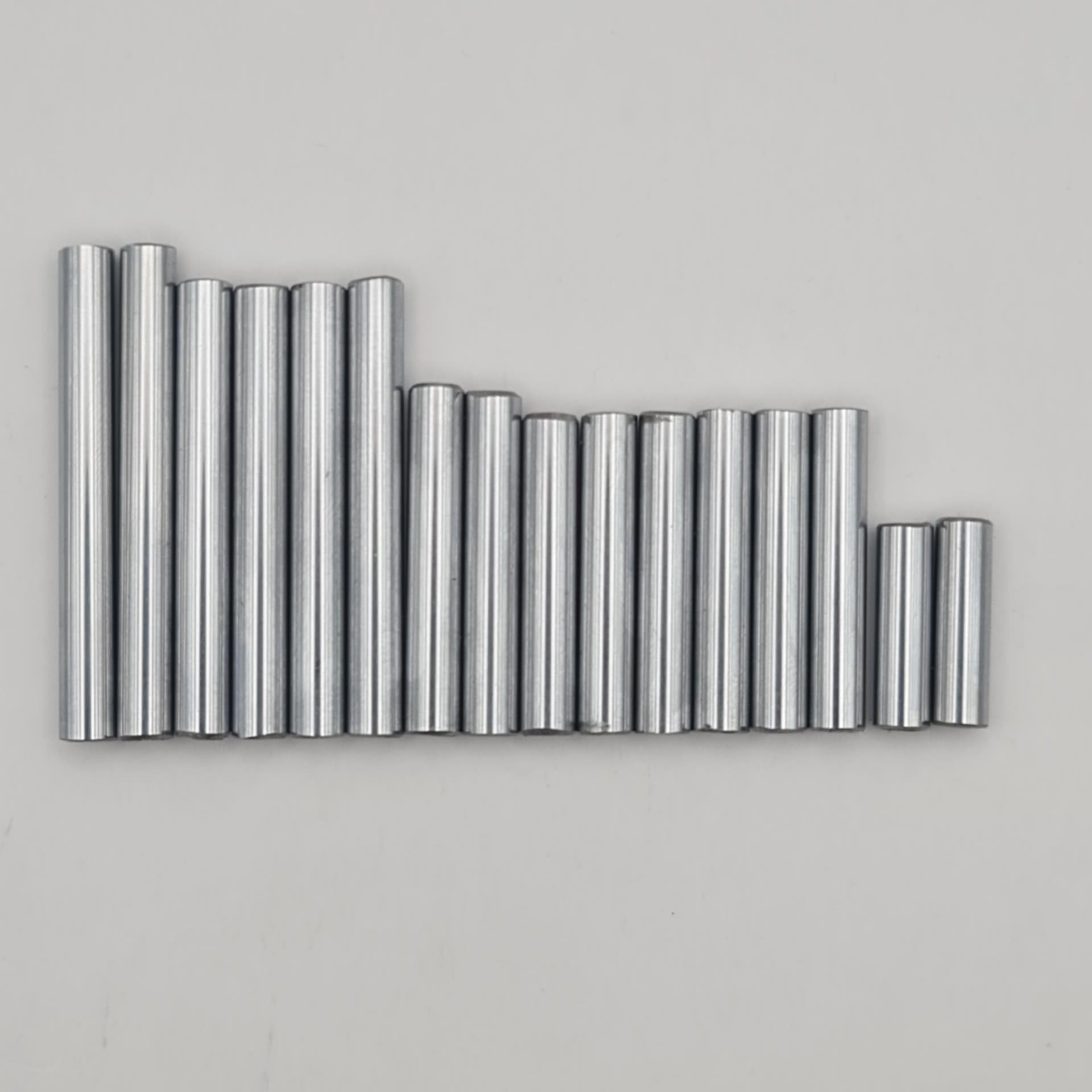

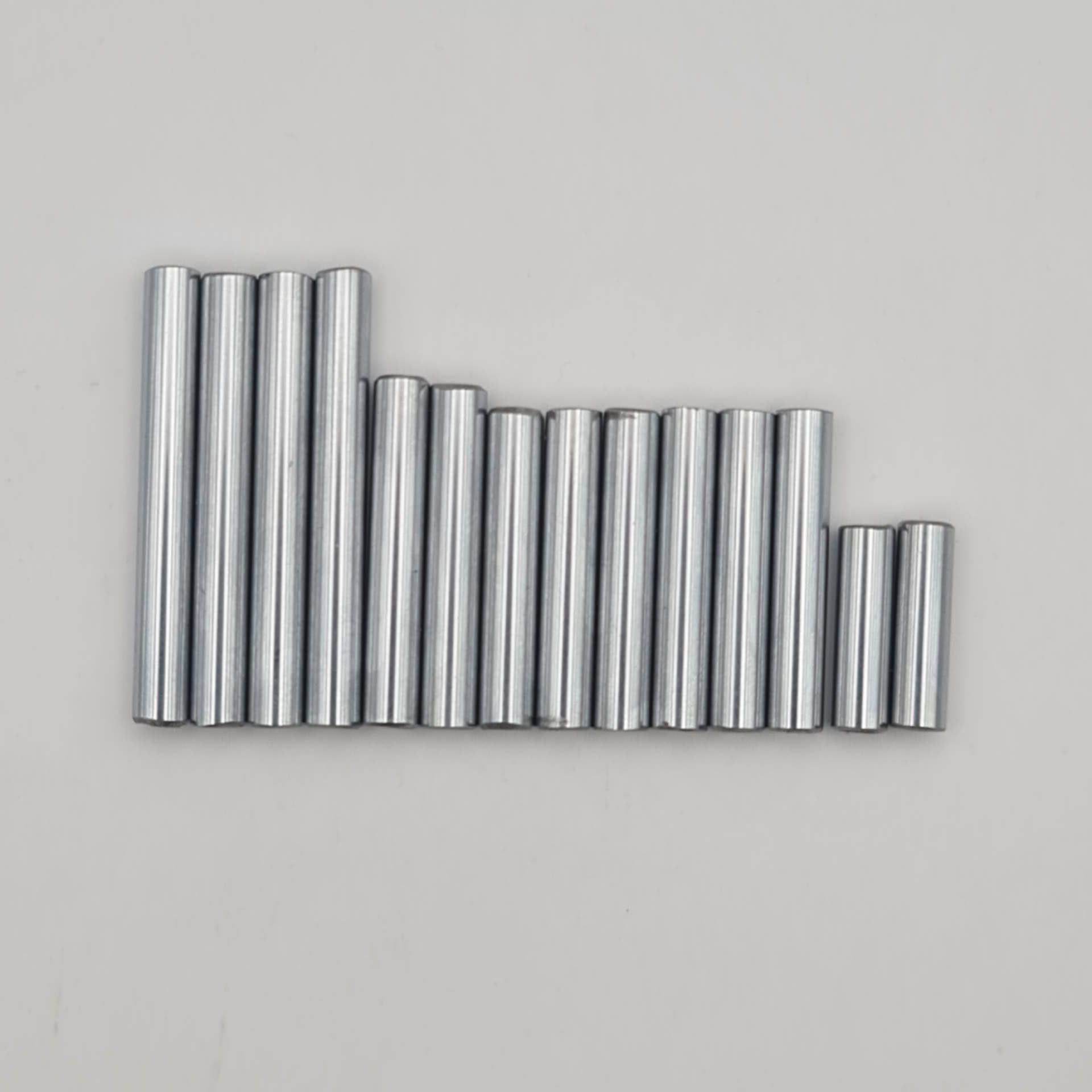

Option to include Ramalama Idler pins or replace the 43mm pins with Ramalama idler pins
Ramalama front idler pins are
- 5mm x 18mm g6 dowel (x2)
