Description
Full BOM Kit including a full acrylic panel set, Dragon High Flow Hotend and Pi
- Stealthburner parts including toolhead LED’s
- Full 2.4R2 kit with BTT Octopus MCU
- Includes an Orange Pi 3 LTS (or a rpi 3/4 if we are able to purchase one)
- Dragon High Flow Hotend
- Sexbolt z endstop
- LSLabs Cerebro breakout board with onboard NodeMCU for WLED control
- ETFE aircraft grade thin wall wiring loom
- Hartk 2 piece pcb toolhead board
- Full acrylic panels set
- ADXL Module included
- Double Sided Smooth/Textured PEI Sheet
What else do I need to build this printer
You will need the Voron 2.4r2 3D functional printed parts to build this printer.
A Hotend and a pi is included in our kits.
What is the difference between this and your more expensive kit?
This kit does not include printed parts or the various upgrades we chose for our flagship kit
Do you provide a Pif Parts set?
We are not a Pif provider, but you can choose one of our High Quality Voron 2.4r2 printed parts set and we will ship them together
Full List of included components
- Full shaft, pulley, bearing and idler kit
- Original Gates Belts loops, 9mm and 6mm wide lengths
- BMG Extruder components in hardened steel
- High Quality Steel Linear Rails
- Individually sourced and tested stepper motor kit,
- 42STH40-2004MAH x2
- 42STH48-2004AC x4
- 36STH20-1004AHG x1
- Phaetus Dragon High Flow Hotend
- 6*20mm 24V 60W Heater Cartridge
- 104GT-2 3*15mm Hot End Thermistor
- Precision Machined Cast Aluminium Bed
- Magnetic Flexible Buildplate
- 750W Bed Heater with built in thermostat
- GDStime and Sunon Dual Ball Bearing Fans
- Orange Pi 3 LTS (or Raspberry pi 3/4 where available)
- Octopus v1.1 with 7* 2209 stepper motor drivers
- Mini 12864 Display
- Meanwell LRS-200-24 and RS-25-5 PSU
- Din Mount SSR rated for UK usage
- 120C Thermal Fuse
- Power Cord
- IEC320 Power Socket
- LED backlit power switch
- Openbuilds Angle Corner Connector
- Din Rails

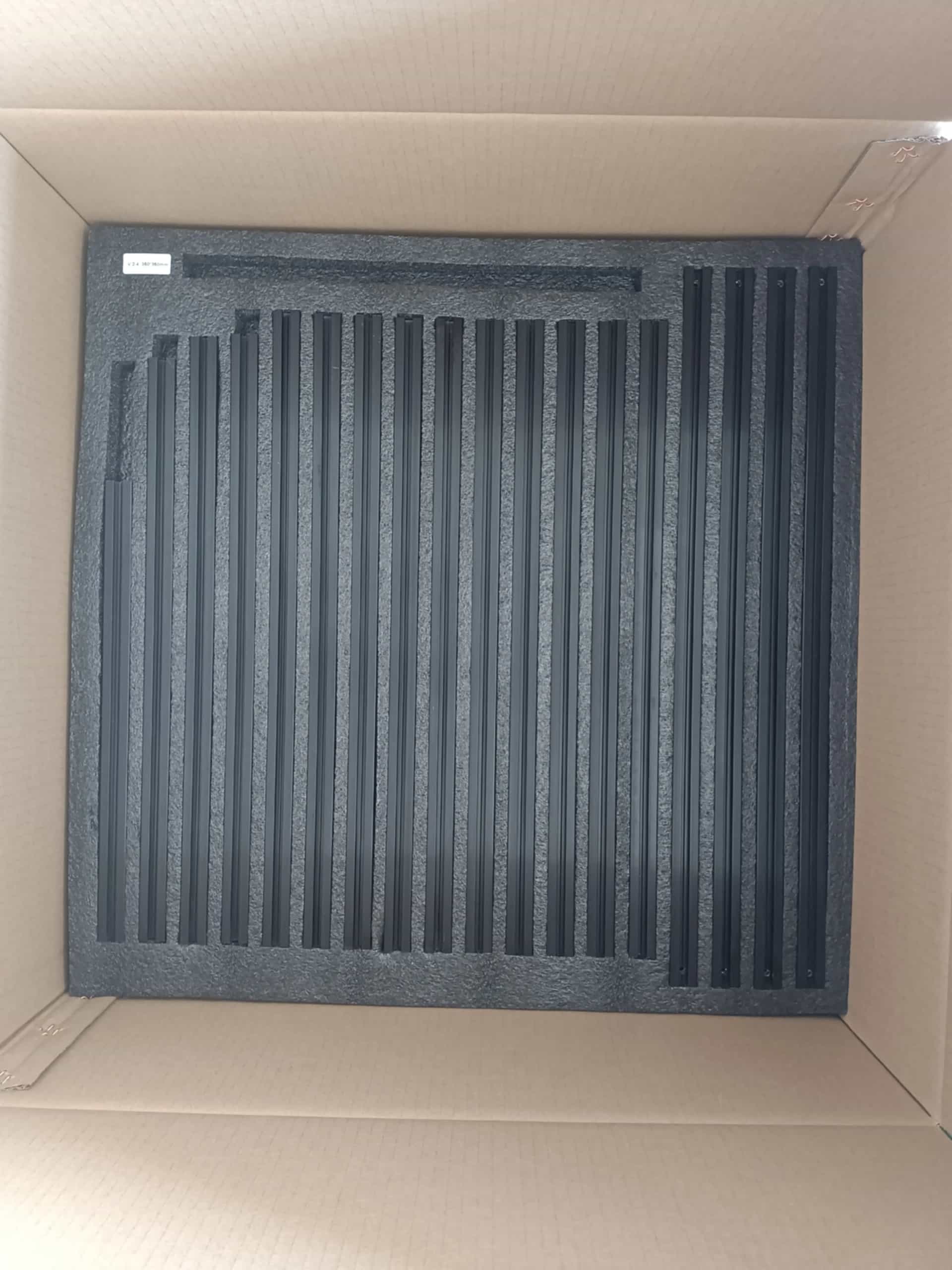

- Black 350mmx350mm Voron Frame
- 4mm Bowden Coupler x2
- Bowden Tube for Spool Holder
- PTFE Tube 4mm OD 3mm ID 1m
- 6×3 Neodimium Magnets
- 3M VHB Tape
- Foam Panel Tape 3mm/1mm
- Cable Ties
- Cerebro Breakout Board and Mount
- LS Labs ETFE complete Wiring Loom
- 2 Part Toolhead PCB
- Stealthburner LEDs
- XY Endstop PCB
- Sexbolt Z Endstop + PCB
- ADXL PCB
- Full Fastener Kit including spares
- Spare connectors kit and crimps for additional wiring if required
- Black Bottom / Deck Panel
- Black Back Panel
- Transparent front doors, top and side panels
